Turret Clutch Spring Guide

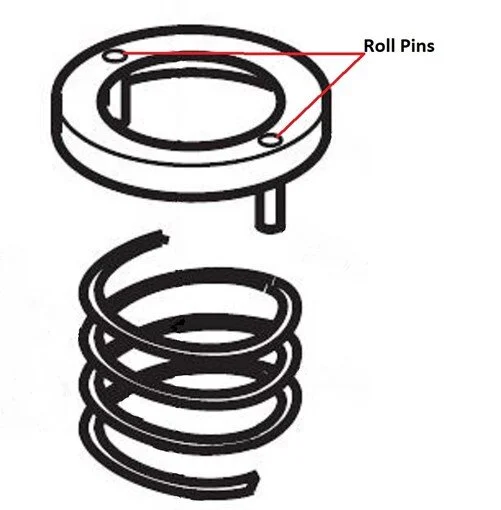

When reassembling the turret clutch, be certain that the roll pins in the spring guide are below the surface of the spring retainer. Also verify that the roll pins are going into the holes in the turret clutch slide plate.
